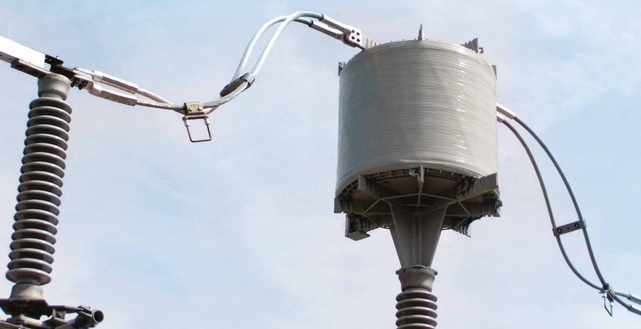

Air Core Reactor
A reactor or inductor is an electrical static machine composed by a coil wounded around an air core.
It is defined by its inductance and it is used in many industrial and T&D applications.
Once a current circulate through the coil, a magnetic field is generated. It is proportional to the current and to the number of turns.
The characteristic of the air core reactors is to provide a linear response of the impedance vs current and this behavior is very important in many applications like filters, shunt and damping.
It is defined by its inductance and it is used in many industrial and T&D applications.
Once a current circulate through the coil, a magnetic field is generated. It is proportional to the current and to the number of turns.
The characteristic of the air core reactors is to provide a linear response of the impedance vs current and this behavior is very important in many applications like filters, shunt and damping.
|
Applications
|
